• Maximum Swing:                                             13.74"
• Maximum Distance Between Centers:             39.37"
• Maximum Grinding Capacity:                           13.74"
• Height of Centers:                                              6.89"
• Power Requirements:                                         13.4HP
• Z-Axis Travel:                                                    43.9"
• Table Swivel:                                                      9°
• X-Axis Travel:                                                    10.24"

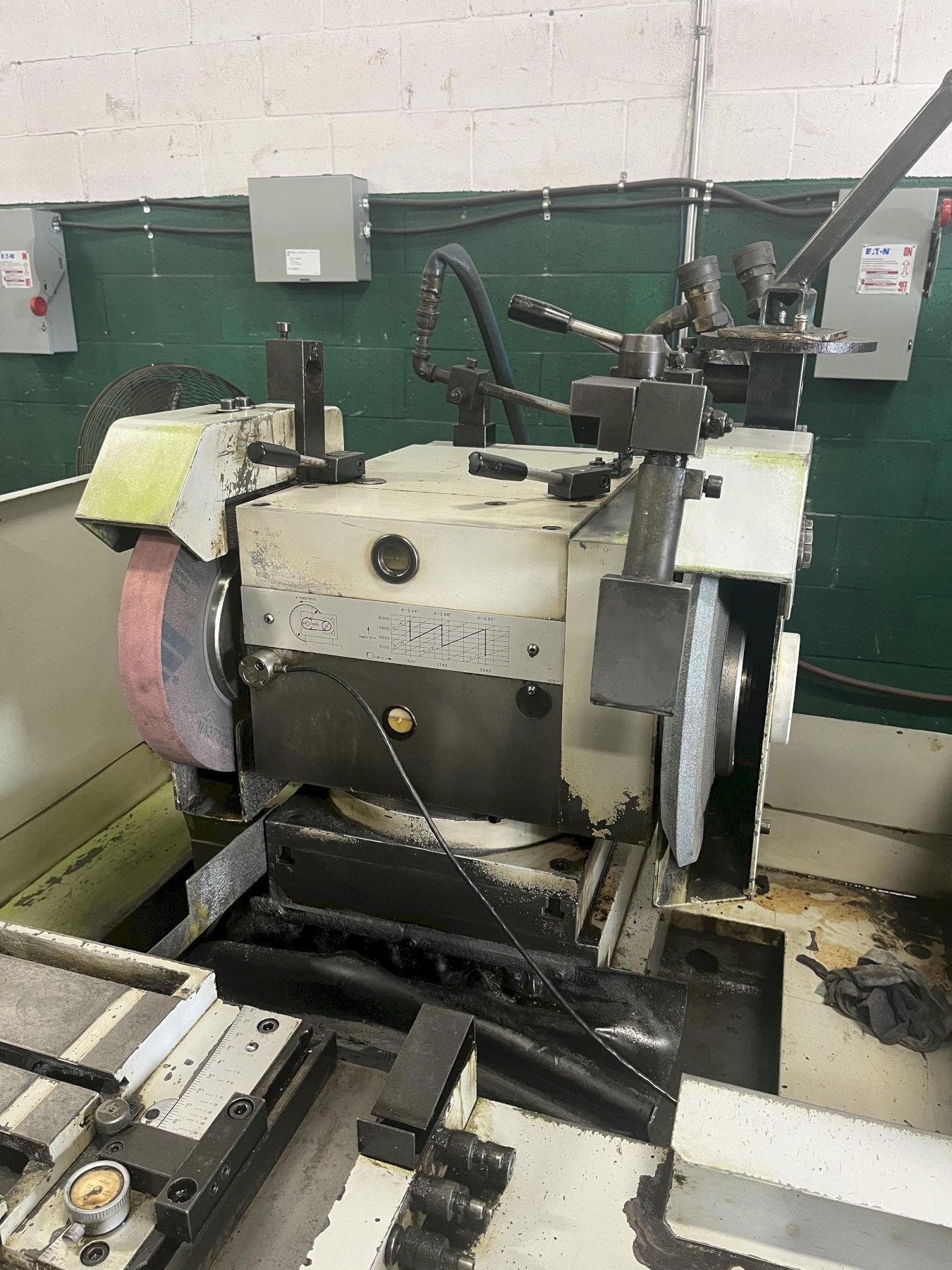

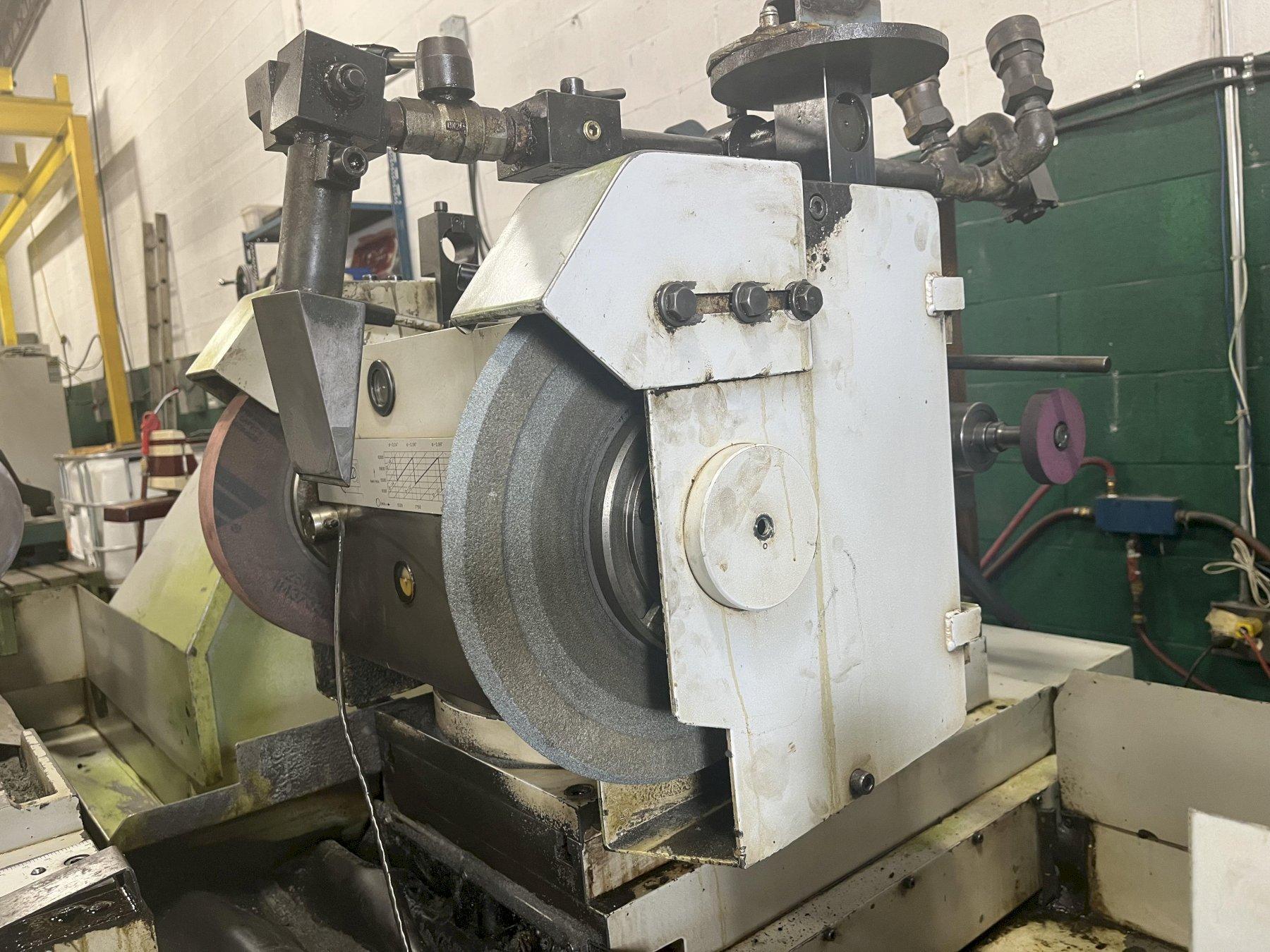

• Number of Grinding Wheels:                     2x External + 1x Internal
• Max Grinding Wheel (External Left):                         14" DIA
• Max Grinding Wheel (External Right):                       16" DIA
• Wheelhead Motor Output:                                 5.9HP
• Wheelhead Swivel:                                            200°
• Internal Spindle Carrier:                                     3.15"

Equipped With:

• Kelco 70 CNC control
• Coolant system
• CSA electrics
• Extra spindle
• Extra grinding wheel
