SPECIFICATIONS:

SWING OVER BED ............................ 40" SWING

SWING OVER CROSS-SLIDE .................... 28"

DISTANCE BETWEEN CENTERS .................. 80"

CROSS SLIDE TRAVEL ........................ 18"

BED WIDTH ................................. 19"

SPINDLE NOSE (CAMLOCK) .................... A2-11

SPINDLE THROUGH HOLE ...................... 6.15"

INFINITELY VARIABLE THRU 4-SPEED AUTO SHIFT HEADSTOCK

SPINDLE SPEED RANGE ........................ 10 - 1,000 RPM

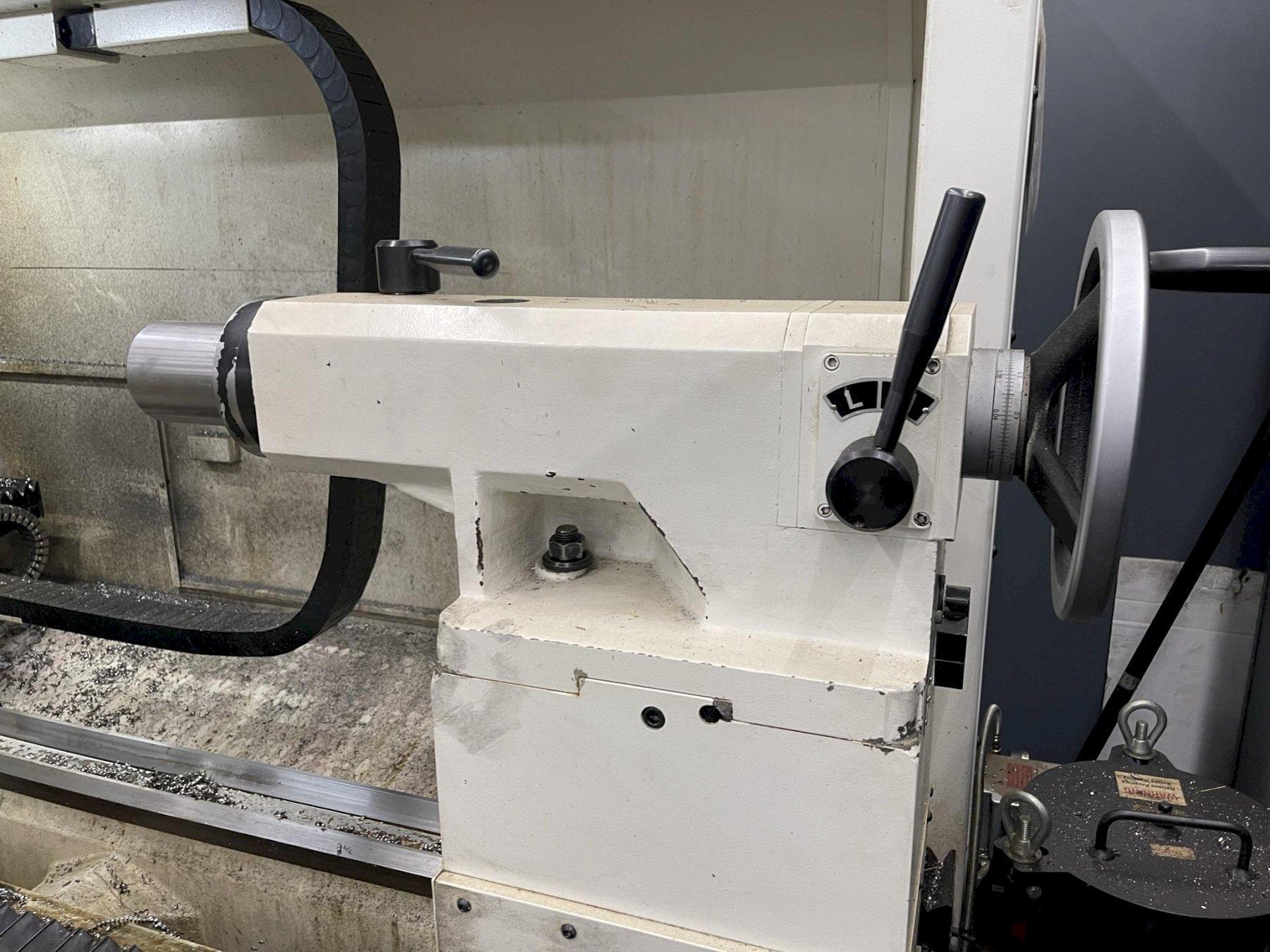

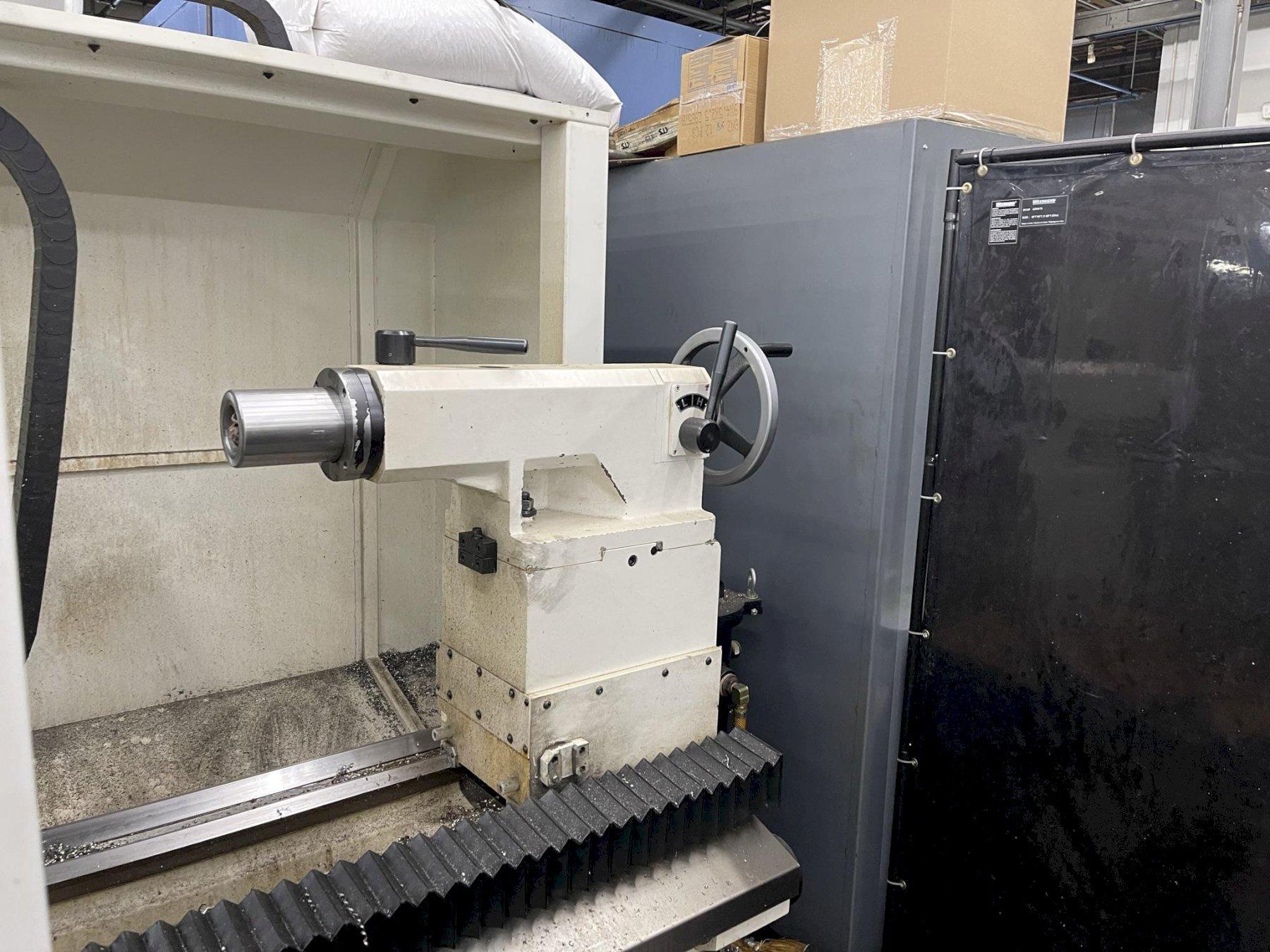

TAILSTOCK:

QUILL TRAVEL ............................... 8"

QUILL DIAMETER ............................. 4.1"

QUILL TAPER HOLE ........................... #6 MORSE TAPER

MACHINE DIMENSIONS ......................... 175"L X  82"W X 78"H

APPROXIMATE WEIGHT ......................... 16,500 LBS

EQUIPPED WITH:

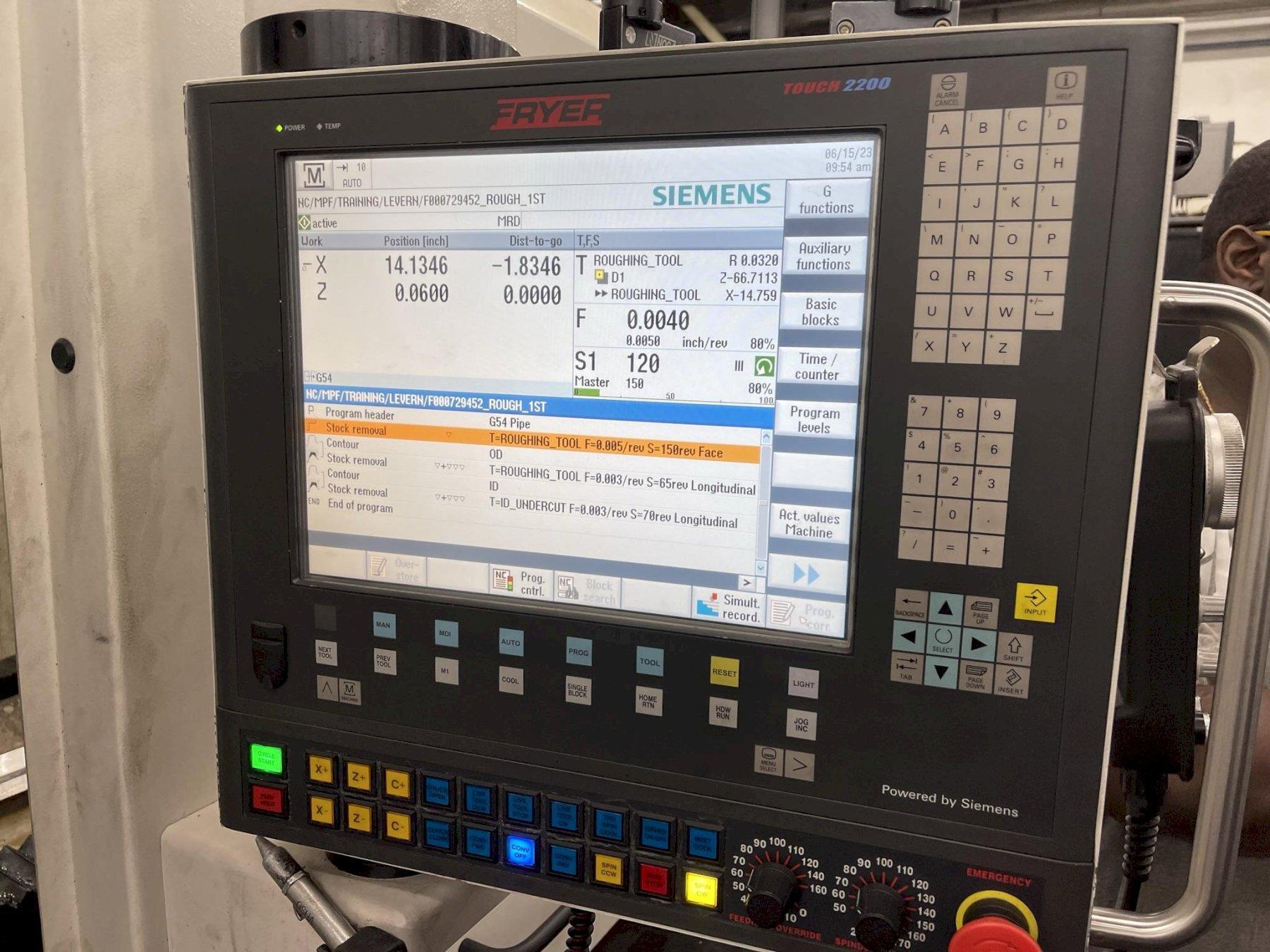

SIEMENS-TOUCH MODEL 2200 CNC CONTROL WITH CONVERSATIONAL GRAPHICS

6" BIG BORE OPTION

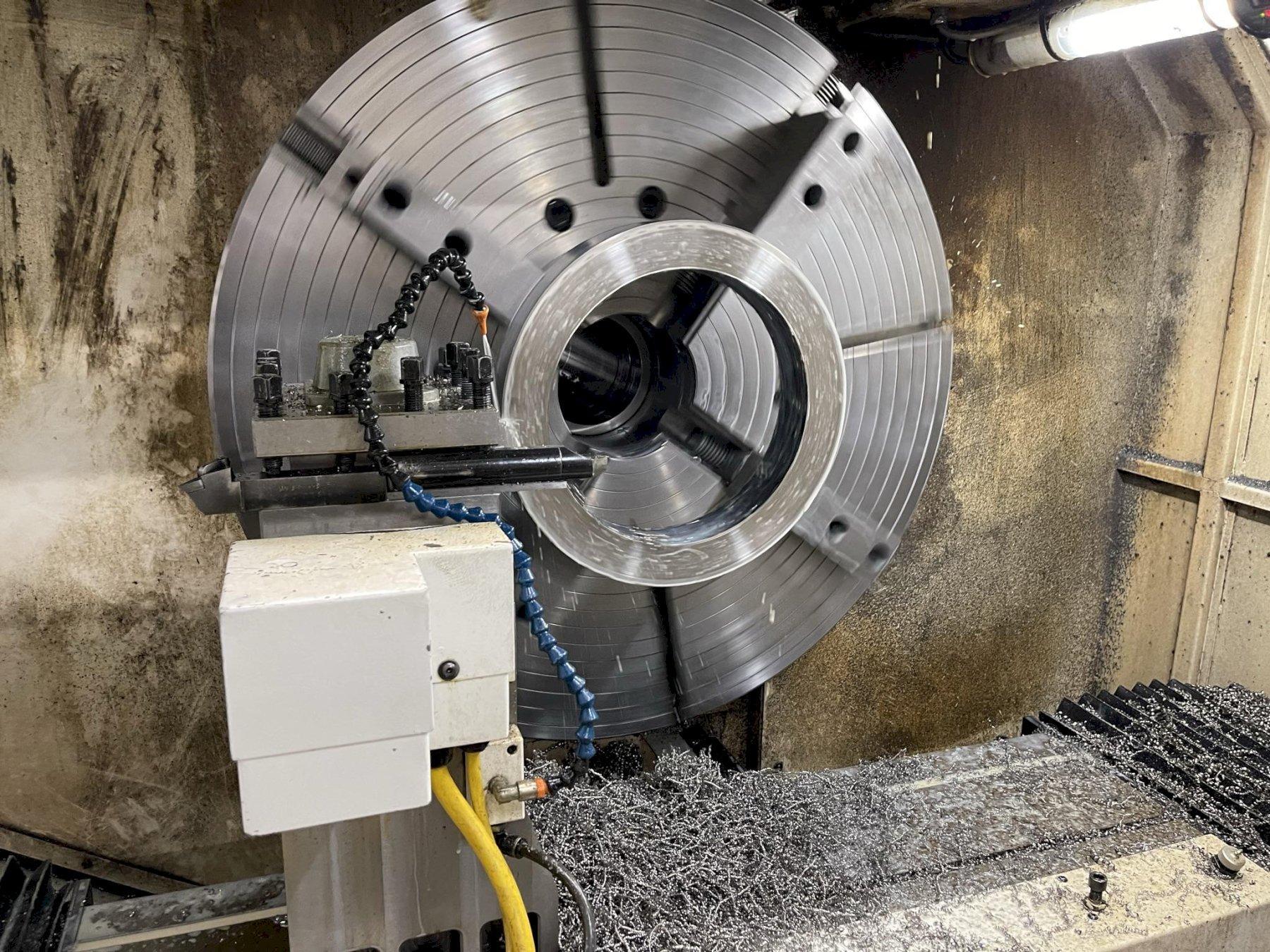

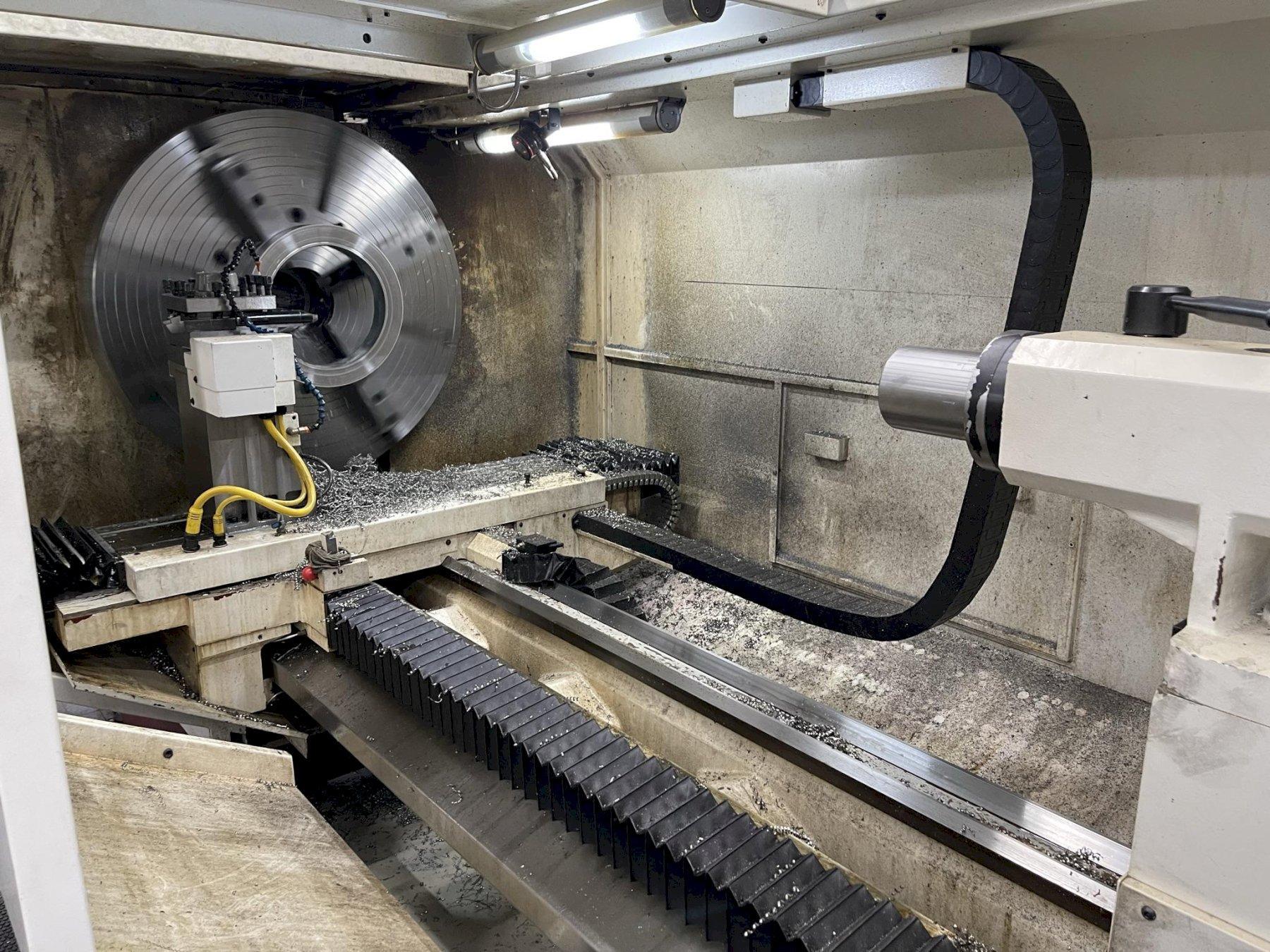

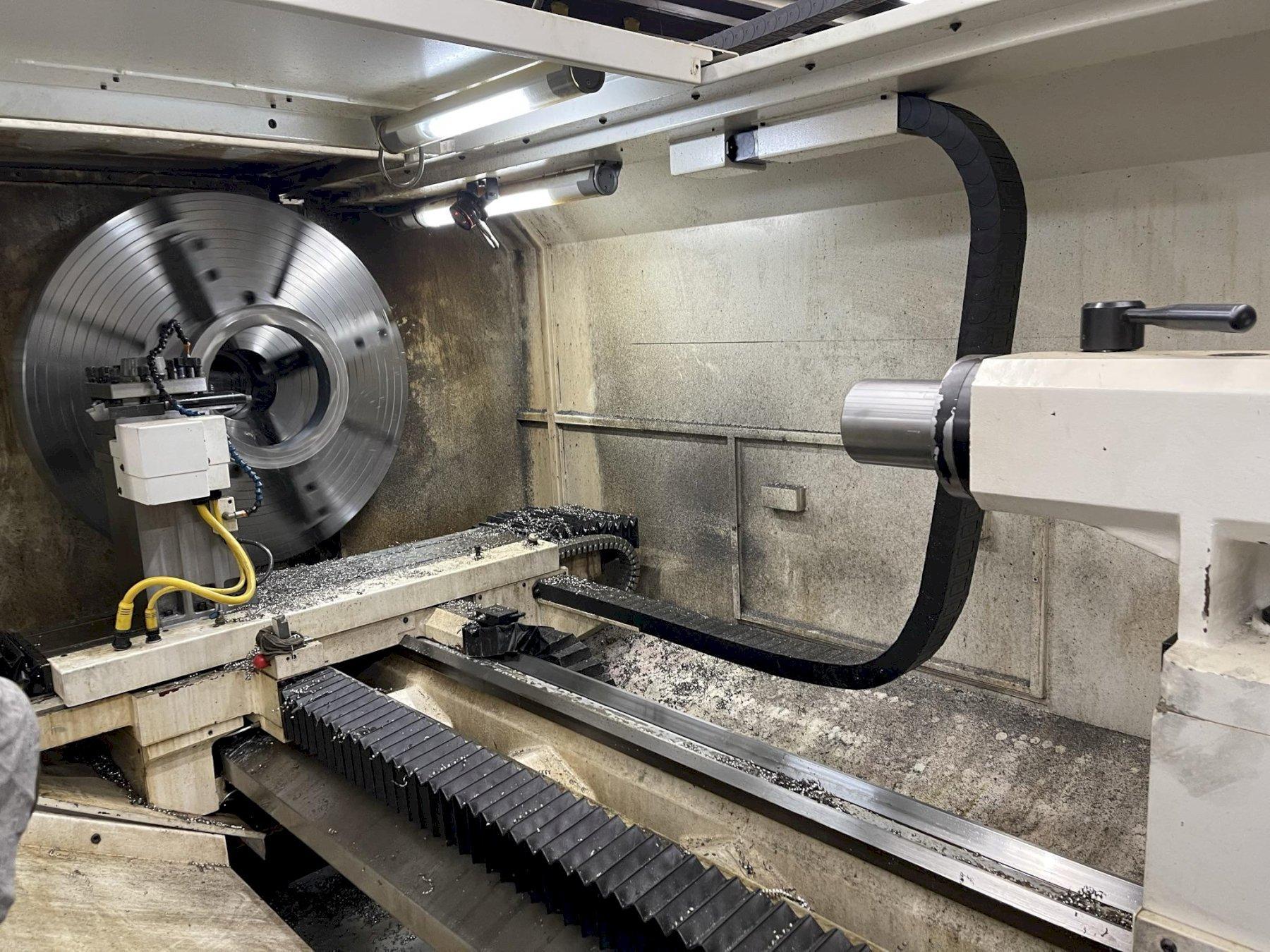

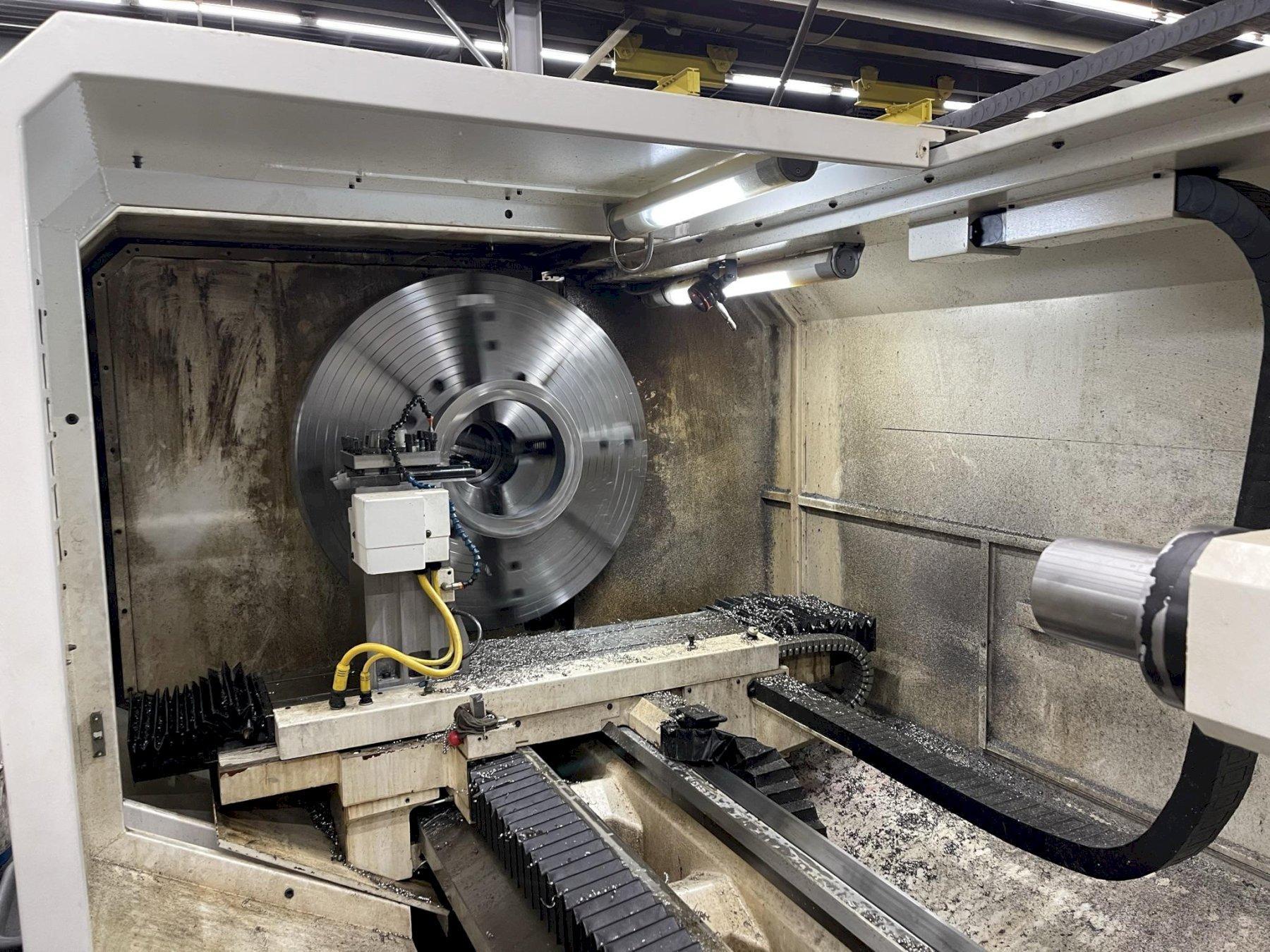

40" 4-JAW FRONT CHUCK

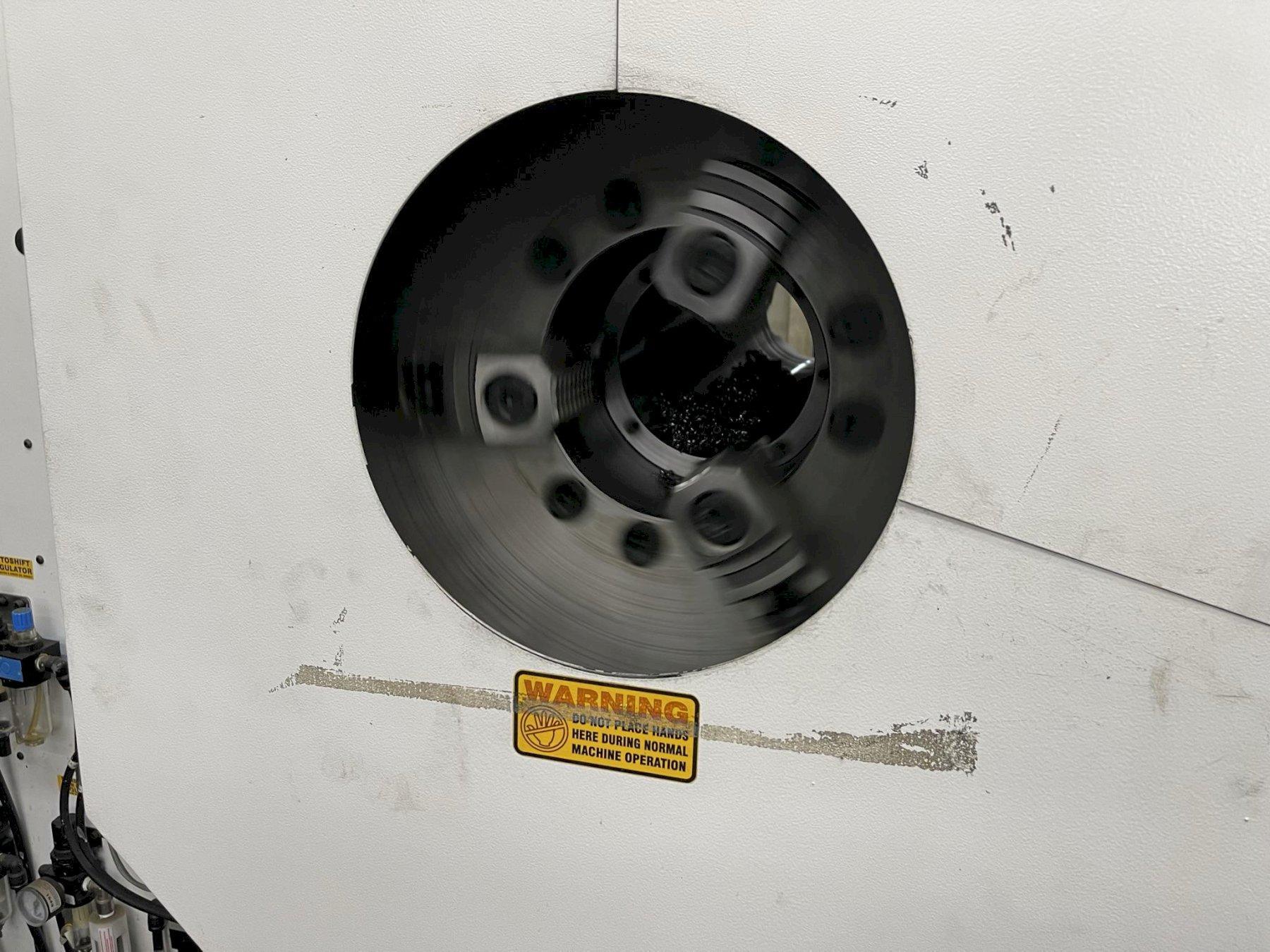

20" 3-JAW REAR CHUCK

FOUR POSITION PROGRAMMABLE TURRET

DUMORE OD GRINDING SPINDLE w/DRESSER FIXTURE ABOVE SPINDLE

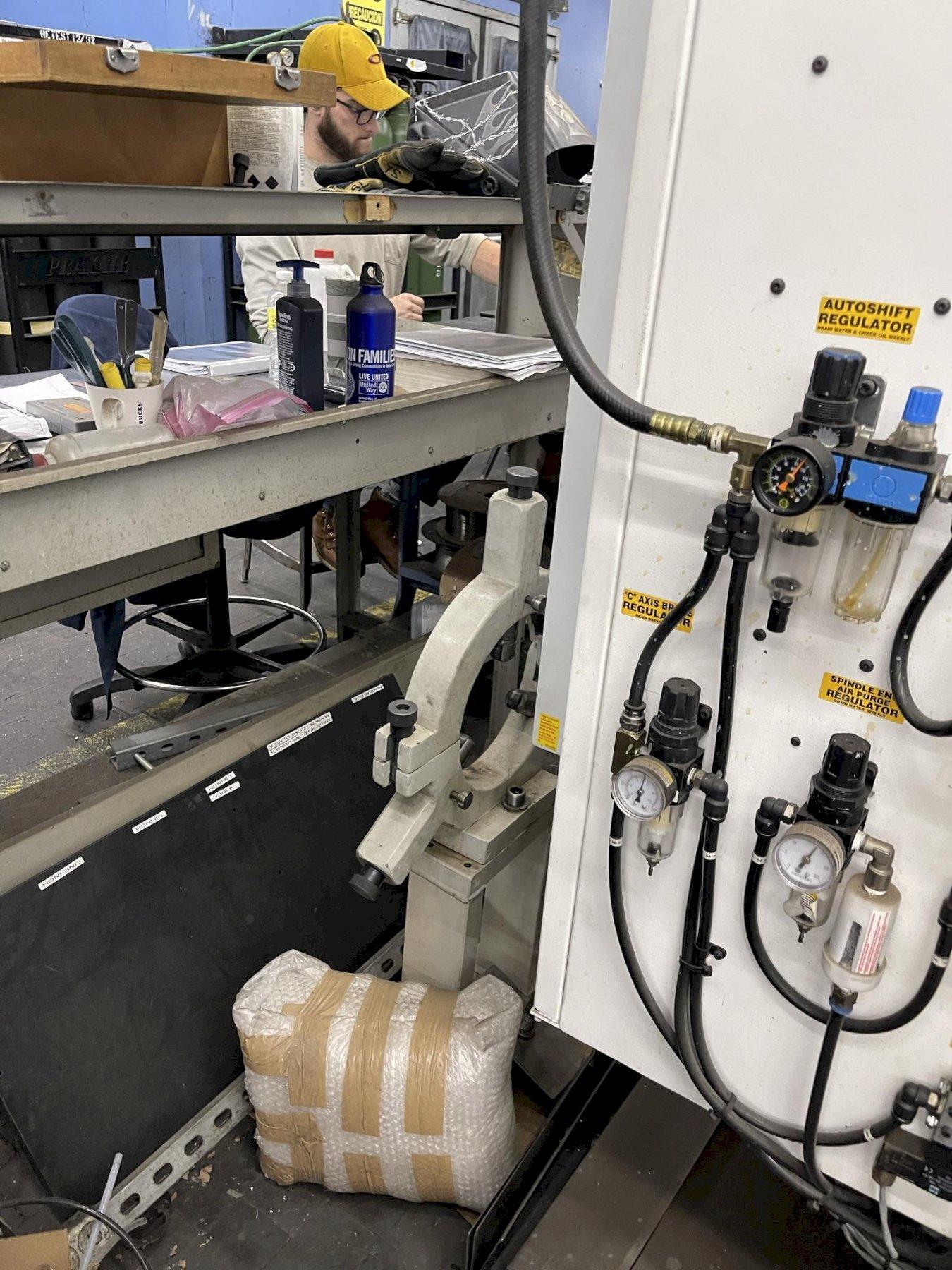

STEADY REST

TWO SPEED MANUAL TAILSTOCK

FLOOD COOLANT SYSTEM W/ SLIDING FRONT GUARDS AND REAR COOLANT SPLASH GUARD

SET OF MANUALS FOR MACHINE AND PROGRAMMING

30 HORSEPOWER SPINDLE MOTOR
