Description
Equipped with the Following Features
Spindle Size|4.92"
X-Horiz Tvl of Table|90.98"
Y-Vert Tvl of Head|71.2"
Power|40 hp
RPM|1,120 RPM
Table-W|60"
Table-L|60"
Spindle Tvl.|28"
Control|CNC (FANUC 18i-M)
Equipped With:

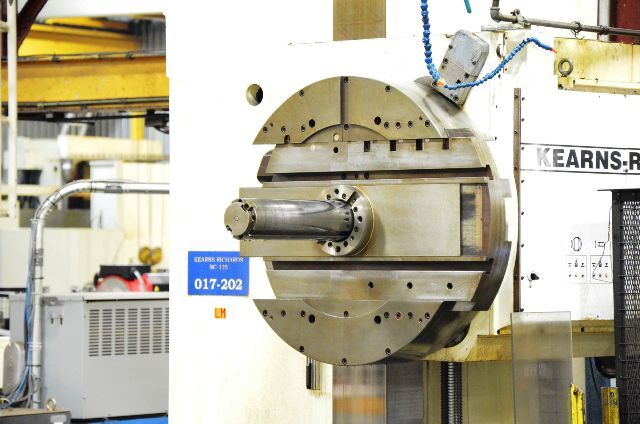

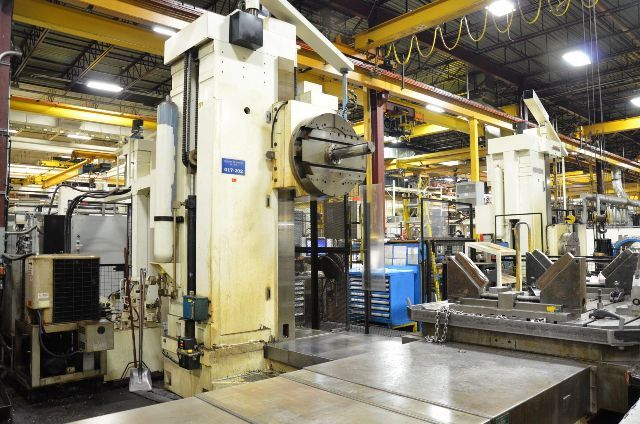

K&R 4.92” 5-Axis CNC Table Type Horizontal Boring Mill
SPECS:
Manufacturer: Kearns & Richards
Model: 125L
SN: 7312
Re-Manufactured: 2002
Spindle Diameter: 4.92”
Spindle Taper: #50
Spindle Speeds: to 1,120 RPM
Table Size: 60”x60”
X-Axis (Table Cross): 90.98”
Y-Axis (Vertical): 71.20”
Z-Axis (Spindle Quill): 28”
W-Axis (Table Longitudinal): 58.70”
U-Axis (Facing Head Slide): 7.60”

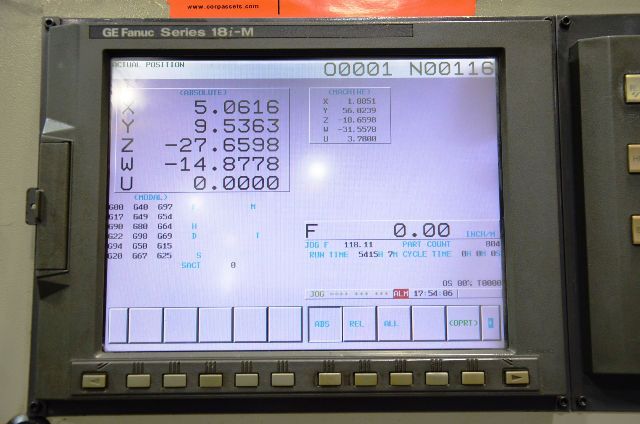

FANUC 18i-M 5-Axis CNC Control
Coolant
Chip Conveyor
Outboard Supports
Location: Mississauga, Ontario L5S 1K6, Canada
