Brand
QUASER
Model
MK603
Type
Machining Centers, Vertical
Stock #
7206
Condition
Used
Year
2012
Location
Mississauga, Ontario
Canada
| CNC Control | yes |

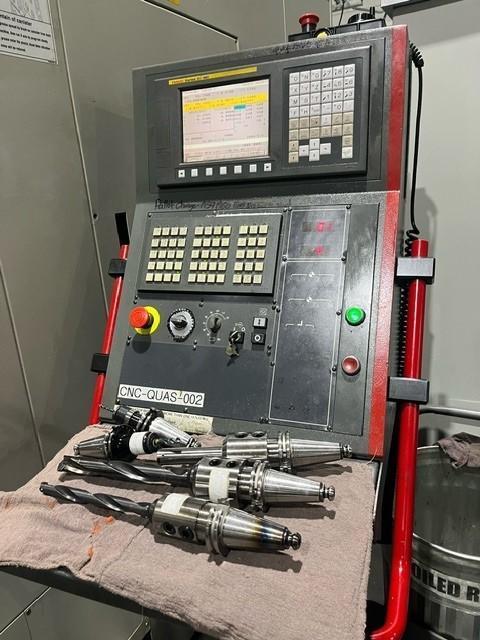

| Type of CNC Control | FANUC 0i-MD |
| # Axis | 3 |
| Table Size | 41.3" x 21.6" (2 Pallets) |
| Table Capacity | 660 pounds |
| X-Axis Travel | 40.1 inches |
| Y-Axis Travel | 24 inches |
| Z-Axis Travel | 23.6 inches |
| Spindle Speed | 12,000 |
| Spindle Taper | CAT 40 Big Plus |
| Main Motor | 30 HP |
| Tool Changer Capacity | 48 |
| X-Axis Feedrate | 787 ipm |
| Y-Axis Feedrate | 787 ipm |
| Z-Axis Feedrate | 787 ipm |
| X-Axis Rapid Traverse Rate | 1,260 ipm |
| Y-Axis Rapid Traverse Rate | 1,260 ipm |
| Z-Axis Rapid Traverse Rate | 1,260 ipm |
| Coolant Thru Spindle | yes |
| Dimensions | 113" x 191" x 130" |
| Max Distance Spindle To Table Top | 28.7 inches |
| Tool Change Time | 2.5" Tool to Tool, 6" Chip to Chip |
